Gear Kit Volkswagen 02A/02J DOG 6-speed is part of Knobgear’s high-performance racing gearbox equipment lineup. This gear kit is designed for precision engineering and high performance, making it ideal for racing applications. The 6-speed DOG configuration ensures rapid and reliable gear shifts, enhancing the overall driving experience. It is specifically tailored for the Volkswagen 02A/02J series transmissions, known for their robustness and power.
Gear Kit Volkswagen 02A/02J DOG 6-speed Specification
Six speed DOG-KIT for VW gearboxes (originally 5 or 6-speed)
various version marked as: MQ250-02J-02A-02C(4×4)-02R-02S
This gearbox is used approx from 1988 till now in Golf, Passat, Octavia, Leon, A3, Toledo etc… Mk2-Mk7
Available Final Drive
| CW | Pinion | Ratio |
| 53 | 11 | 4.818 |
| 55 | 12 | 4.583 |
| 53 | 12 | 4.417 |
| 51 | 12 | 4.250 |
| 52 | 13 | 4.000 |
| 49 | 13 | 3.769 |
| 52 | 16 | 3.250 |
Golf
| Tooth Count | Tooth Count | Ratio | |
| 1. speed | 33 | 11 | 3.000 |
| 2. speed | 32 | 14 | 2.286 |
| 3. speed | 28 | 16 | 1.750 |
| 4. speed | 28 | 19 | 1.474 |
| 5. speed | 26 | 21 | 1.238 |
| 6. speed | 24 | 23 | 1.043 |
Golf Short 2017
| Tooth Count | Tooth Count | Ratio | |
| 1. speed | 33 | 11 | 3.000 |
| 2. speed | 32 | 14 | 2.286 |
| 3. speed | 28 | 15 | 1.867 |
| 4. speed | 25 | 16 | 1.563 |
| 5. speed | 27 | 20 | 1.350 |
| 6. speed | 25 | 21 | 1.190 |

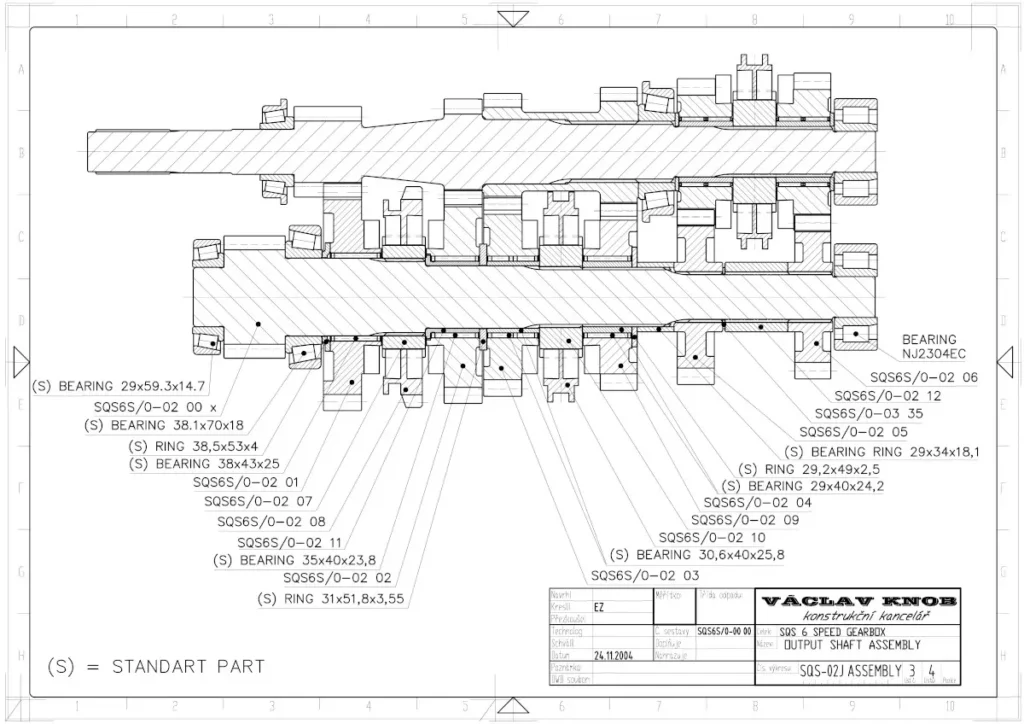

Drawing

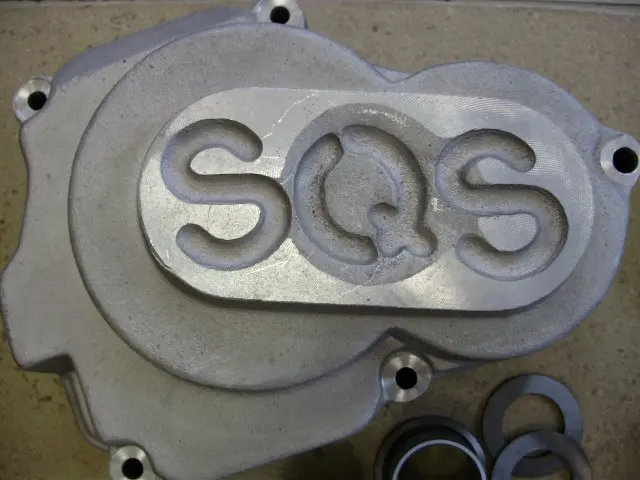

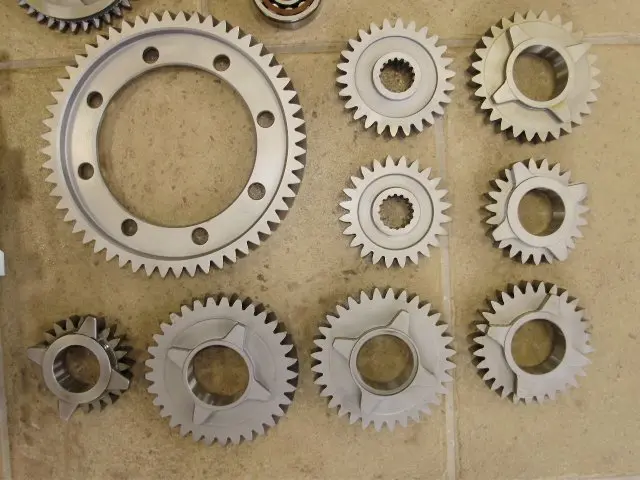

Gallery
