Gear Kit Volkswagen 02M/02Q DOG 6-speed is part of Knobgear’s high-performance racing gearbox equipment lineup. This gear kit is designed for precision engineering and high performance, making it ideal for racing applications. The 6-speed DOG configuration ensures rapid and reliable gear shifts, enhancing the overall driving experience. It is specifically tailored for the Volkswagen 02M/02Q series transmissions, known for their robustness and power.
Gear Kit Volkswagen 02M/02Q DOG 6-speed Specification
6° DOG-KIT for VW gearboxes 02M-02Q (MQ350 line)
This gearbox is used approx from 2000 till now in Golf, Passat, Octavia, Leon, A3, Toledo, Bora etc… mostly with Turbo engines, TDI, V6
Mk4-Mk7
available ratio sets : LONG – BOOST – DRAG 4°
(details below or in speedcounter ) – possible deliver as 6° or 4° set
Gear set without FD !
– Use original VW Final Drives – wide range – see ratios below !
Available Final Drive (OEM)
| CW | Pinion 1-4 | Pinion 5-6 | FD 1-4 | FD 5-6 |
|---|---|---|---|---|
| 72 | 17 | 22 | 4.235 | 3.273 |
| 63 | 15 | 19 | 4.200 | 3.316 |
| 71 | 18 | 23 | 3.944 | 3.087 |
| 62 | 16 | 20 | 3.875 | 3.100 |
| 70 | 19 | 24 | 3.684 | 2.917 |
| 69 | 20 | 25 | 3.450 | 2.760 |
| 60 | 18 | 22 | 3.333 | 2.727 |
| 68 | 21 | 26 | 3.238 | 2.615 |
| 65 | 22 | 27 | 2.955 | 2.407 |
Ratio set 2 LONG 2015
| Speed | Tooth Count | Tooth Count | Ratio |
|---|---|---|---|
| 1. speed | 29 | 9 | 3.222 |
| 2. speed | 26 | 12 | 2.167 |
| 3. speed | 23 | 14 | 1.643 |
| 4. speed | 22 | 16 | 1.375 |
| 5. speed | 22 | 15 | 1.467 |
| 6. speed | 20 | 16 | 1.250 |
Ratio set 3 BOOST
| Speed | Tooth Count | Tooth Count | Ratio |
|---|---|---|---|
| 1. speed | 29 | 9 | 3.222 |
| 2. speed | 26 | 12 | 2.167 |
| 3. speed | 23 | 15 | 1.533 |
| 4. speed | 20 | 17 | 1.176 |
| 5. speed | 20 | 17 | 1.176 |
| 6. speed | 17 | 17 | 1.000 |
| 6. speed (optional) | 16 | 17 | 0.941 |
Drawing

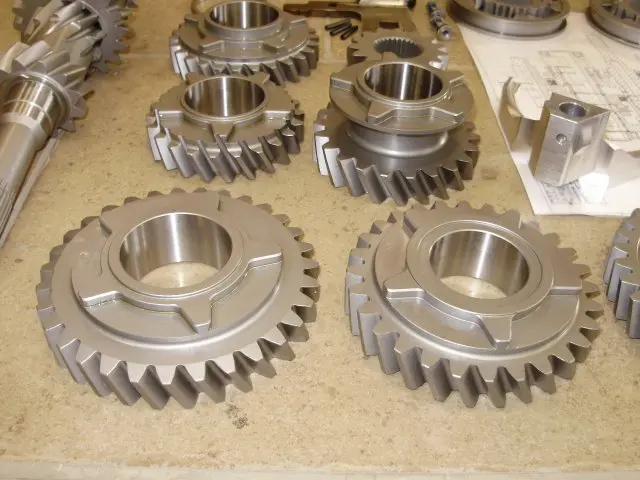

Gallery
